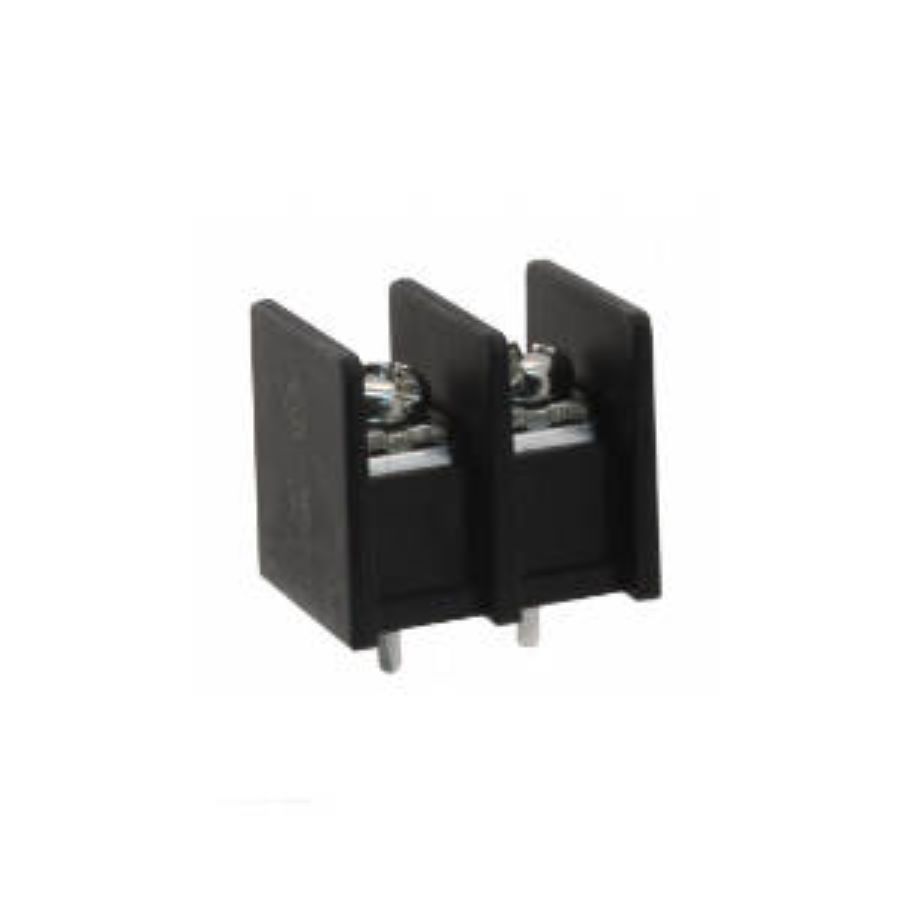

OSTYK51102030
Manufacturer:
On Shore Technology
Mfr.Part #:
OSTYK51102030
Datasheet:
Description:
Terminal Blocks Through Hole 2 9.5 mm 30 A 300 V 22 AWG to 10 AWG
| Parameter | Value |
|---|---|
| Termination | Screw |
| Max Operating Temperature | 115 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| RoHS | Compliant |
| Voltage | 300 V |
| Pitch | 9.5 mm |
| Current Rating | 30 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 2 |
| Color | Black |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Insulation Material | Nylon |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 10 AWG |
| Number of Wire Entries | 2 |
| Connection Method | Screw |
| Wire Gauge Range | 22 AWG to 10 AWG |
Stock: 7265
Distributors
pcbx
pcbxUnit Price$0.76338
Ext.Price$0.76338
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.76338 | $0.76338 |
| 10 | $0.55434 | $5.54340 |
| 25 | $0.48278 | $12.06950 |
| 50 | $0.43561 | $21.78050 |
| 100 | $0.39519 | $39.51900 |
| 300 | $0.35886 | $107.65800 |
| 500 | $0.32587 | $162.93500 |
| 1000 | $0.30504 | $305.04000 |
| 3000 | $0.28805 | $864.15000 |
| 5000 | $0.27200 | $1360.00000 |
